    Toyota UA80F Gearbox | Used & Reconditioned 3.5L Automatic Transmission in UAE

    Next-Day Delivery Across the UAE

    Warranty Service Provided

    Fast Installation / Technical Support

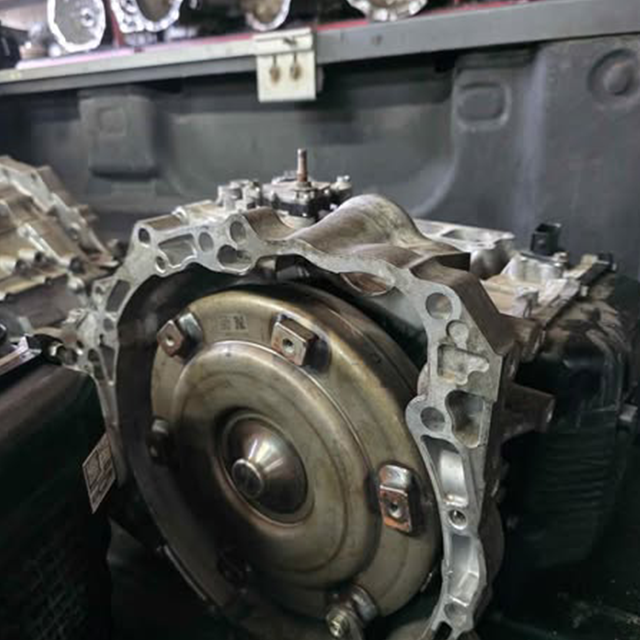

    Toyota UA80F Gearbox | Used & Reconditioned 3.5L Automatic Transmission in UAE

    Super5 supplies professionally reconditioned and used UA80F 8-speed gearboxes for Toyota 3.5L models. Each unit is fully inspected, bench-tested, and refurbished to OEM standards for reliable performance and smooth shifting. All gearboxes come with a 3-month warranty, with expert installation available across Dubai, Sharjah, and Abu Dhabi.

    Price : 5800 AED

    Stock: 16 units

    Vehicle Fitment

    YearsMakeModelEngineDrive Type
    2019-2022 Toyota Highlander 3.5L 4WD
    2017-2023 Toyota Alphard 3.5L RWD
    2017-2022 Toyota Sienna 3.5L RWD


    The UA80F is an advanced 8-speed automatic transmission designed for Toyota 3.5L vehicles, including SUVs, MPVs, and minivans. Reconditioned units provide smooth and precise gear shifts, responsive acceleration, and stable ATF pressure under both city and highway driving conditions. Optimized for fuel efficiency and comfort, the UA80F ensures reliable operation in high-temperature UAE conditions. Each gearbox is bench-tested to maintain performance and durability, delivering OEM-standard reliability for both 4WD and RWD/2WD applications.

    Compatibility

    Specification Details
    Gearbox Model UA80F
    Transmission Type 8-Speed Automatic
    Manufacturer Toyota
    Torque Capacity ~350 Nm
    ATF Type Toyota WS ATF
    Mechatronic Type Integrated TCU
    Dry Weight ~115 kg
    Cooling System ATF cooler recommended for SUVs/minivans

    Technical Specifications

    Prepare the Vehicle

    Park on level ground, disconnect the battery, and safely lift the vehicle using a hoist or jack stands to access the transmission.

    Remove Old Gearbox

    Drain all ATF fluid, disconnect wiring harnesses, cooler lines, and carefully unbolt the existing transmission.

    Install Reconditioned UA80F

    Position the reconditioned gearbox using a transmission jack. Replace worn seals and torque all mountings according to OEM specifications to ensure proper alignment.

    Reconnect Components

    Reconnect all wiring harnesses, sensors, and the TCU. Ensure every plug is fully seated to prevent error codes.

    Refill ATF Fluid

    Refill with Toyota WS ATF and adjust fluid levels according to the vehicle’s operating temperature guidelines.

    Programming & Adaptation

    Use a Toyota-compatible diagnostic scanner to perform TCU adaptation and ECU calibration, ensuring smooth 8-speed operation and optimal gear shifting.

    Final Road Test

    Test for smooth gear engagement, proper acceleration, and stable ATF pressure under city, highway, and off-road conditions, particularly for SUVs.



    FAQS

    Q1: Are new UA80F gearboxes available?

    No. Only used and professionally reconditioned UA80F units are supplied with a warranty.

    Q2: Is UA80F compatible with AWD and RWD vehicles?

    Yes. UA80F supports both 4WD and 2WD applications depending on the model.

    Q3: Is ECU/TCU programming required?

    Yes. Proper adaptation and calibration are necessary for smooth 8-speed operation.

    Q4: Are UA80F gearboxes suitable for UAE climate?

    Yes. Bench-tested for durability in high temperatures and heavy city/highway driving.

    Q5: Do you ship UA80F gearboxes outside the UAE?

    Yes. Secure shipping is available across GCC countries and other global regions.

    Warranty and Service

    3-Month Warranty
    Covers workmanship and functional defects.

    Bench-Tested Units
    Each gearbox is tested and inspected before shipping.

    Installation & Technical Support
    Guidance and professional installation available across UAE cities.

    Replacement Parts Support
    OEM-standard TCU modules, solenoids, and seals available for long-term reliability.
