U760F Gearbox for Toyota 2.5L 4WD | Reconditioned & Used Transmission for Sale in UAE

Next-Day Delivery Across the UAE

Warranty Service Provided

Fast Installation / Technical Support

U760F Gearbox for Toyota 2.5L 4WD | Reconditioned & Used Transmission for Sale in UAE

Name: U760F Gearbox for Toyota 2.5L 4WD | Reconditioned & Used Transmission for Sale in UAE - Gearbox Supplier-Gearbox Repair & Service in Dubai
Availability: InStock

Buy used and professionally reconditioned U760F gearboxes for Toyota Sienna 2.5L (2011–2012) and RAV4 2.5L (2013–2015) 4WD. Super5 offers full refurbishment, warranty, and professional installation across Dubai, Sharjah, and Abu Dhabi.

Price : 4300 AED

Stock: 11 units

Vehicle Fitment

Years	Make	Model	Engine	Drive Type
2011–2012	Toyota	Sienna	2.5L	4WD
2013–2015	Toyota	RAV4	2.5L	4WD

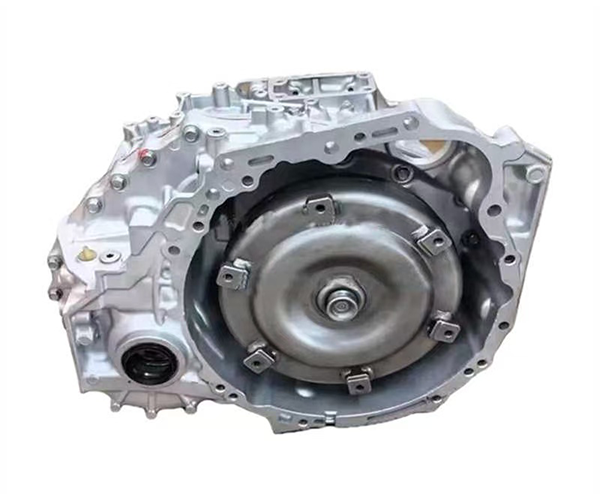

111111111111The U760F gearbox is a 6-speed automatic transmission engineered by Aisin for Toyota 4WD vehicles with 2.5L engines. It is specifically compatible with Toyota Sienna 2011–2012 and RAV4 2013–2015. This transmission is known for smooth gear shifts, reliable performance, and high durability, making it ideal for both daily driving and challenging conditions like UAE heat and off-road scenarios. At Super5, we offer professionally reconditioned and low-mileage used U760F gearboxes, with full warranty and professional installation support across Dubai, Sharjah, Abu Dhabi, and other UAE locations.

Compatibility

Specification	Details
Gearbox Model	U760F
Transmission Type	6-Speed Automatic (4WD)
Manufacturer	Aisin Seiki (Toyota Group)
Gear Ratios	1st – 3.30, 2nd – 1.90, 3rd – 1.42, 4th – 1.00, 5th – 0.71, 6th – 0.61, Reverse – 4.15
Torque Capacity	~280 Nm
ATF Type	Toyota WS (World Standard)
Mechatronic Type	Integrated TCU
Dry Weight	~90 kg

Technical Specifications

Prepare the Vehicle
Park your Toyota on a level surface and disconnect the battery to ensure safety during the installation process.

Remove Old Transmission
Drain the existing ATF completely and carefully remove the old transmission unit from the vehicle.

Install U760F Gearbox
Mount the U760F gearbox using new seals and properly torque all mountings according to manufacturer specifications.

Reconnect Electrical Components
Reconnect all wiring harnesses and the mechatronic controller, ensuring secure and correct connections.

Fill with Transmission Fluid
Refill the gearbox with OEM Toyota WS ATF to maintain optimal performance and longevity.

Perform Adaptation and Testing
Carry out TCU adaptation, followed by a road test calibration to verify smooth operation and proper functionality.

Professional Support
Super5 provides full professional installation services in Dubai and Sharjah, with optional pickup and delivery support available throughout all UAE cities.

FAQS

Q1: Is the U760F gearbox compatible with FWD vehicles?

A: No, it is designed exclusively for 4WD Toyota Sienna 2011–2012 and RAV4 2013–2015.

Q2: Do you sell used U760F gearboxes?

A: Yes, low-mileage Japanese-imported units are available with warranty.

Q3: Can you ship outside the UAE?

A: Yes, secure international shipping is available to GCC, Africa, and other regions.

Q4: Is ECU/TCU programming required after installation?

A: Yes, adaptation is recommended to ensure smooth shifting and peak performance.

Q5: Can I get installation in Abu Dhabi or Sharjah?

A: Absolutely. Super5 provides professional installation across Dubai, Sharjah, Abu Dhabi, and other UAE cities.

Warranty and Service

3-Month Warranty
All used and professionally reconditioned gearboxes include a 3-month standard warranty covering functional defects and workmanship.

Bench-Tested Units
Each gearbox undergoes thorough bench testing and diagnostic evaluation before delivery to ensure reliable performance.

Installation & Technical Support
Super5 provides technical guidance for installation and troubleshooting. Professional installation services are available in Dubai, Sharjah, Abu Dhabi, Ajman, and other UAE locations.

Replacement Parts & Component Support
Worn or faulty components identified during installation can be replaced using OEM-standard parts, ensuring long-term gearbox reliability.
